Building Your Operational Business Architecture
In our previous post, we explored how strategic business architecture creates the essential foundation for transformation by aligning your organization’s mission and vision with core processes. Now we turn to the second critical layer in our architectural framework: Operational Business Architecture—the map that navigates the territory between strategic vision and practical execution.
The Missing Middle: Where Transformation Dreams Meet Organizational Reality
Picture this scenario: Your executive team has articulated a compelling transformation vision. Your technology team has selected sophisticated platforms to enable this vision. Yet somehow, the initiative struggles to gain traction. Deadlines slip. Stakeholders grow frustrated. The promised benefits remain elusive.
This all-too-common situation reveals a critical gap in most transformation approaches: the operational middle layer where abstract strategy meets concrete reality. Without this bridge, your transformation resembles a suspension bridge missing its central span—structurally impressive at either end but ultimately incapable of connecting the shores it was designed to join.
The operational gap manifests in predictable patterns:
- Executives express frustration that their vision isn’t being implemented as intended
- Technical teams complain that business requirements keep changing
- Different departments interpret the same strategic objectives in conflicting ways
- Implementation efforts fragment into disconnected initiatives rather than cohesive change
These symptoms point to a single root cause: the absence of operational business architecture that translates strategic intentions into a practical framework for action.
What Is Operational Business Architecture?
Operational business architecture provides a visual representation of your organization’s end-to-end business processes, showing how different functions interact to deliver value. While strategic architecture answers “why” your transformation matters, operational architecture reveals “how” your organization creates value in practice.
Think of it as the essential map that guides your transformation journey—showing not just the destination but the terrain you must navigate to reach it. This map illuminates the rivers you must cross, the mountains you must climb, and the forests you must traverse—helping transformation teams anticipate challenges rather than stumbling upon them unexpectedly.
The most effective operational architectures include:
- Customer and Operational Experience Lifecycle: A high-level view of how work flows through your organization from end to end
- Critical Business Process Groupings: The major categories of activity that combine to create customer and organizational value
- Cross-Functional Interactions: The points where different departments must collaborate to achieve outcomes
- Pain Points and Opportunities: The areas where transformation can create the greatest strategic impact
Why Operational Architecture Determines Transformation Success
For transformational projects to succeed, employees at all levels must understand not just the strategic “why” but also the operational “how.” Operational business architecture creates this understanding in several powerful ways:
1. Bridging Organizational Boundaries: The Integration Challenge
Most significant organizational challenges occur not within departments but at the boundaries between them—the seams where work crosses functional lines. Traditional organizational structures emphasize vertical reporting relationships but often neglect the horizontal flows where value is actually created.
Operational architecture makes these horizontal flows explicit—showing how work moves across organizational boundaries to create customer and business value. This visibility helps transformation teams focus on the integration points that often determine success or failure.
Consider a customer onboarding process that spans marketing, sales, operations, and customer service. Without operational architecture, each department might optimize its own piece of the process without considering the end-to-end customer experience. With proper architecture, the cross-functional nature of the process becomes explicit—enabling holistic transformation that enhances overall value rather than departmental efficiency.
2. Creating a Common Language: The Communication Challenge
Each functional area in your organization has developed its own specialized vocabulary, metrics, and mental models. Marketing talks about campaigns and conversion rates. Operations discusses throughput and efficiency. IT focuses on systems and integrations. These different languages create invisible barriers to transformation—making it difficult for teams to collaborate effectively even when they share common goals.
Operational architecture establishes a shared visual language that bridges these divides, helping diverse stakeholders see how their specialized work fits into the bigger picture. This common language prevents the all-too-common scenario where stakeholders nod in apparent agreement while actually envisioning entirely different outcomes.
3. Revealing Interdependencies: The Coordination Challenge
Transformation initiatives often falter because they fail to recognize critical interdependencies between processes, systems, and organizational units. Without visibility into these connections, changes in one area can create unintended consequences elsewhere—leading to resistance, workarounds, or outright failure.
Operational architecture illuminates these interdependencies—showing how changes in one area inevitably affect others. This visibility helps transformation teams anticipate ripple effects and design solutions that address the end-to-end flow rather than optimizing isolated components.
4. Identifying the Critical Path: The Prioritization Challenge
Not all processes contribute equally to your transformation goals. Some represent critical pathways that directly impact strategic outcomes, while others play supporting roles. Without operational architecture, transformation teams often struggle to distinguish between these categories—leading to misplaced priorities and efforts.
By mapping the operational flow, you can identify the vital pathways where transformation will create the greatest strategic impact. This clarity helps focus limited resources on the areas that matter most while ensuring that supporting processes receive appropriate attention.
Building Your Operational Business Architecture
Creating an effective operational architecture isn’t about producing perfect diagrams—it’s about building shared understanding across your organization. The most successful architectures combine visualization with collaborative development:
Customer and Operational Experience Lifecycle
The cornerstone of operational architecture is the Customer and Operational Experience Lifecycle—a high-level visual representation of how your organization creates value from end to end:
Figure 1: Approach to Ensure a High-Quality Customer Experience
This visualization serves multiple purposes:
- It provides the big picture that helps stakeholders see beyond their specific area
- It organizes complex processes into logical groupings that make sense to business users
- It shows the sequential flow of activities that create customer and organizational value
- It reveals the circular nature of many business processes, where outcomes feed back into inputs
The most effective experience lifecycles balance comprehensiveness with clarity—showing enough detail to be meaningful while remaining simple enough to be instantly understandable.
Critical Business Process Groupings
Within the overall lifecycle, identify the major process groupings that constitute your operational reality. These groupings typically align with key stages in the customer journey or value creation process—creating natural segments that can be explored in greater detail.
For each process grouping, document:
- The primary business objectives it serves
- The key stakeholders involved in its execution
- The major inputs it requires and outputs it produces
- The critical systems that support its operation
- The pain points that currently limit its effectiveness
This structured approach transforms an overwhelming operational landscape into manageable segments that can be addressed systematically through your transformation efforts.
Cross-Functional Interactions
Pay particular attention to the points where work crosses organizational boundaries—the hand-offs, approvals, and collaborations that often determine process effectiveness. These interactions typically represent both the greatest opportunities for improvement and the most significant risks to transformation success.
For each cross-functional interaction, clarify:
- What information must flow between departments
- Who is responsible for initiating and completing the interaction
- What decisions must be made at the boundary point
- What systems support the interaction
- What metrics measure its effectiveness
This focus on cross-functional interactions prevents the common trap of optimizing departmental silos at the expense of end-to-end value creation.
Collaborative Development: Building Shared Understanding
Operational models often fail not because they’re poorly designed, but because they’re built in isolation from the realities of how work actually gets done. To bridge that gap, we use a collaborative three-step process that blends top-down intent with bottom-up insight.
This approach ensures alignment between strategic goals and the operational realities of teams across functions. It helps organizations avoid overly theoretical models—and instead, produce blueprints that guide real execution.
Below is the structured, repeatable method we use to get there:

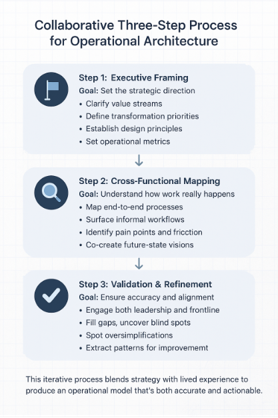

Figure 2: Collaborative Three-Step Process for Operational Architecture
Making Operational Business Architecture Work in Practice
To ensure your operational architecture becomes a living tool rather than a static diagram:
1. Use Visual Storytelling
Create compelling visual narratives that help stakeholders understand how workflows through the organization. These visualizations should be accessible and engaging—making complex operational realities instantly comprehensible.
2. Connect to Strategic Objectives
Maintain explicit connections between your operational architecture and the strategic objectives established in your business architecture. This linkage ensures that operational discussions remain anchored in strategic purpose rather than getting lost in process details.
3. Reference Architecture in Decision-Making
Use the operational architecture as a reference point when making key transformation decisions. Ask questions like: “How will this change affect the end-to-end flow?” or “Which cross-functional interactions will be impacted?” This consistent reference reinforces the architecture’s value as a decision-making tool.
4. Update as You Learn
As your transformation progresses, continuously refine the operational architecture based on new insights. This evolution demonstrates the architecture’s role as a learning tool rather than just a planning document—creating a virtuous cycle where implementation experience enhances architectural understanding.
Looking Ahead: From Operational Architecture to Process Design
While operational architecture provides the essential map for your transformation journey, navigating this territory requires detailed process design. In our next post, we’ll explore the third layer in our architectural framework: Business Process Design.
We’ll examine how to translate operational understanding into detailed process flows that guide implementation—using techniques like Conference Room Pilots to ensure that process designs bridge the gap between operational vision and technical reality.
This article is the second in our “Blueprint for Workflow Design and Business Process Analysis” series—a journey through the architectural layers that transform strategic vision into operational reality.
How has your organization bridged the gap between strategic vision and operational execution? Have you found effective ways to visualize and communicate how workflows across functional boundaries? Share your experiences in the comments below.
